Axiomtek - a world-renowned leader relentlessly devoted in the research, development and manufacture of series of innovative and reliable industrial computer products of high efficiency - is pleased to introduce its latest 15” industrial touch panel PC with rich expansions, the P1157E-500. This rugged touch panel computer adopts a 15” XGA TFT LCD display, featuring an IP65-rated front bezel and 5-wire resistive touchscreen with 250 nits brightness– making it perfectly suited for use in multimedia kiosks or as a human machine interface (HMI) in factory automation applications.
The 15” P1157E-500 has scalable CPU options with the 7th generation Intel® Core™ i7/i5/i3, Celeron® and Pentium® processors in an LGA1151 socket with an Intel® H110 chipset (codename: Kaby Lake). This industrial touch panel system supports dual DDR4-2133 Long-DIMM sockets with up to 32 GB memory. “The IP65-rated P1157E-500 features one PCIe x4 slot or one PCI slot for flexible integration of a variety of add-on cards. It also comes with built-in speakers for multimedia applications, and an optional Wi-Fi 802.11 b/g/n module and WLAN antenna for wireless connectivity,” said Raymond Liao, a product manager of Product PM Division at Axiomtek. “Moreover, users only need to remove four screws to open the back cover for quick assembly.”

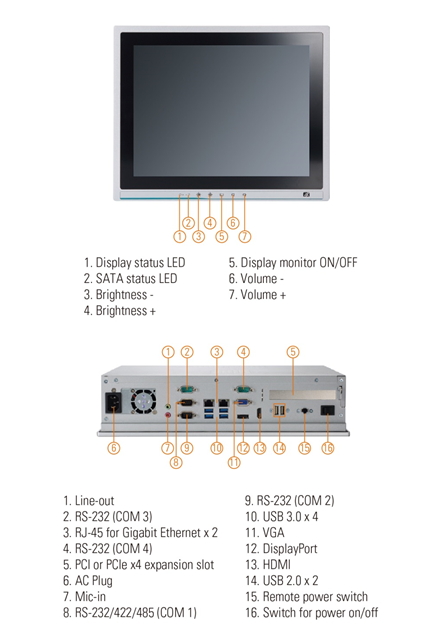

Rich I/O interfaces include three RS-232 ports, one RS-232/422/485 port, four USB 3.0 ports, two USB 2.0 ports, two Gigabit Ethernet ports (built-in Intel® i211AT Ethernet Controller), one audio (Mic-in/Line-out), one VGA, one HDMI and one DisplayPort. For extensive storage options, the 15” XGA Intel® Kaby Lake-based touch panel PC supports one 2.5”/3.5” SATA HDD or two 2.5” SATA HDD upon request.
The P1157E-500 has five OSD membrane keys on the front panel to provide an easier way to adjust the display, volume and brightness. Front-facing LED indicators are available for convenient monitoring of hard drive and display status, To ensure this 15-inch Intel® Core™-based touch panel PC can be integrated into different settings, it can be installed by rack mount, VESA arm or wall mounting. It also supports Windows® 10, Windows® 8.1 and Windows® 7.
Axiomtek’s P1157E-500 will soon be available in September 2017. For more product information or pricing, please visit our global website at www.axiomtek.com or contact one of our sales representatives at info@axiomtek.com.tw.
Advanced Features:
- 15" XGA TFT LCD display
- LGA1151 socket 7th gen Intel® Core™ i7/i5/i3, Celeron® & Pentium® processors (codename: Kaby Lake)
- Less screw design for easy installation and easy maintenance
- 2 Gigabit LAN, 4 USB 3.0, 2 USB 2.0 and 4 COM (1 x RS-232/422/485) ports
- One PCIe x4 or one PCIe slot
- Built-in speakers and optional Wi-Fi 802.11 b/g/n module
- Robust IP65 compliant aluminum front bezel
- 5 OSD keys on front panel
