| CPU |
- Intel Atom® x5-E3940 4C @1.6 GHz, TDP: 9.5W
|
| Chipset |
|
| System Memory |
- 1 x DDR3L-1866 SO-DIMM, up to 8GB
|
| BIOS |
|
| COM |

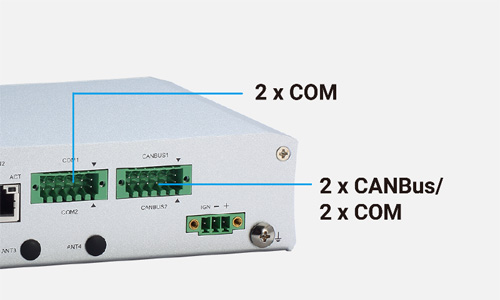

- Vehicle: 2 x RS-232/422/485 (4-wire) with shield grounding
- Railway: 4 x Isolated RS-232/422/485 (4-wire) with shield grounding
|
| USB |
|
| PoE |
|
| Ethernet |
- Vehicle :
- 2 x RJ-45 10/100/1000 Mbps Ethernet (Intel® I210-IT)
- Railway:
- 2 x M12 A-coded 10/100/1000 Gbps Ethernet (Intel® I210-IT)
- 2 x M12 X-coded 10/100/1000 Gbps Ethernet (Intel® I210-IT)
|
| Display |
- 2 x HDMI 1.4b (with keylock)
|
| CANbus |
- Vehicle: 2 x Isolated CANBus 2.0 A/B, support SocketCAN
|
| Digital I/O |
- Vehicle: 1 x DB9 8-bit programmable DIO
- Railway: 1 x Terminal block isolated DIO 4-in/4-out (isolation voltage: 2 kV)
|
| Audio |
|
| Storage |
- 1 x Internal 2.5" SATA drive (9.5 mm height)
- 1 x mSATA (occupied 1 PCI Express Mini Card slot)
|
| Expansion |
- 2 x Full-size Rev.1.2 PCI Express Mini Card slot:
- 1 x USB/PCIe with external SIM socket
- 1 x mSATA/USB/PCIe with external SIM socket
|
| Others |
- 1 x Reset button
- 1 x Power button
- 1 x Remote switch
- 4 x Antenna opening
|
| Power Consumption |
- Vehicle: 9 VDC, 3.742A; 36VDC, 0.907A
- Railway: 24 to 110VDC, 0.98A - 0.33A
|
| Power Supply |
- General use: 1 x Terminal block/M12, 9 - 36 VDC

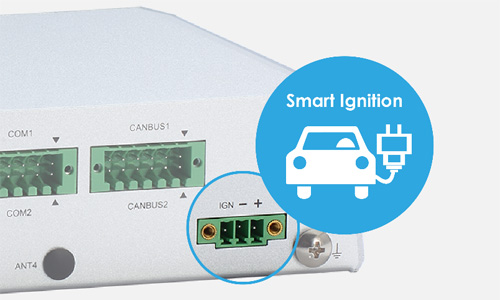

- Vehicle: 1 x Terminal block, 12/24VDC with Smart Ignition
- Railway: 1 x M12, 24 to 110VDC
|
| Watchdog Timer |
- 255 levels, 1 to 255 sec.
|
| Construction |
- Aluminum extrusion and heavy-duty steel, IP20
|
| Operating Temperature |
- -40°C to +70°C (-40°F to +158°F) with W.T. peripheral
|
| Relative Humidity |
- 0% to 95%, non-condensing
|
| Vibration |
- 3 Grms w/ SSD (5 to 500Hz, X/Y/Z direction; random, operating)
- 1 Grms w/ HDD (5 to 500Hz, X/Y/Z direction; random, operating)
- 2 Grms w/ HDD & Anti-Vibration Kit (5 to 500Hz, X/Y/Z direction; random, operating)
- MIL-STD-810G, Method 514.6C-VI Category 4 compliant
|
| Shock |
|
Dimensions
(W x D x H) |
- 164.1 x 128 x 44.1 mm (6.46" x 5.04” x 1.74”)
|
| Weight (net/gross) |
- 1.02 kg (2.24 lb)/1.44 kg (3.17 lb)
|
| Certifications |
- CE, FCC, LVD, EN 45545-2 and EN 50155 certified ; ISO 7637-2 compliant
|
| EOS Support |
- Windows® 10 64-bit, Ubuntu 20.04
|
| Software Support |
|
| Mounting |
|
