Developing an efficient solar energy system can be challenging due to its dependency on weather conditions and time of day, leading to intermittency and variability in energy generation. Fluctuations during generation also pose challenges in grid integration, management, and energy storage.
To address these challenges, Axiomtek has developed a series of rugged industry-grade IoT gateways equipped with Intel® processors to optimize energy utilization. Our DigiHub smart edge software and embedded application programming interface (eAPI) streamline integration for customers, enable a seamless connection with their devices, and accelerate development speed.
Energy Storage Battery Management: Solution to Intermittency
Energy storage batteries, as an integral part of solar energy storage systems, are designed to store excessive power generated in the daytime or supply energy during peak hours, which mostly coincide with the time when solar energy is actively being generated. Stable real-time data processing is crucial for managing these systems effectively. Facilities can build a robust IoT infrastructure by using entry-level gateways for protocol conversion and data acquisition, along with edge computing gateways to enhance efficiency and process real-time data at the edge level.

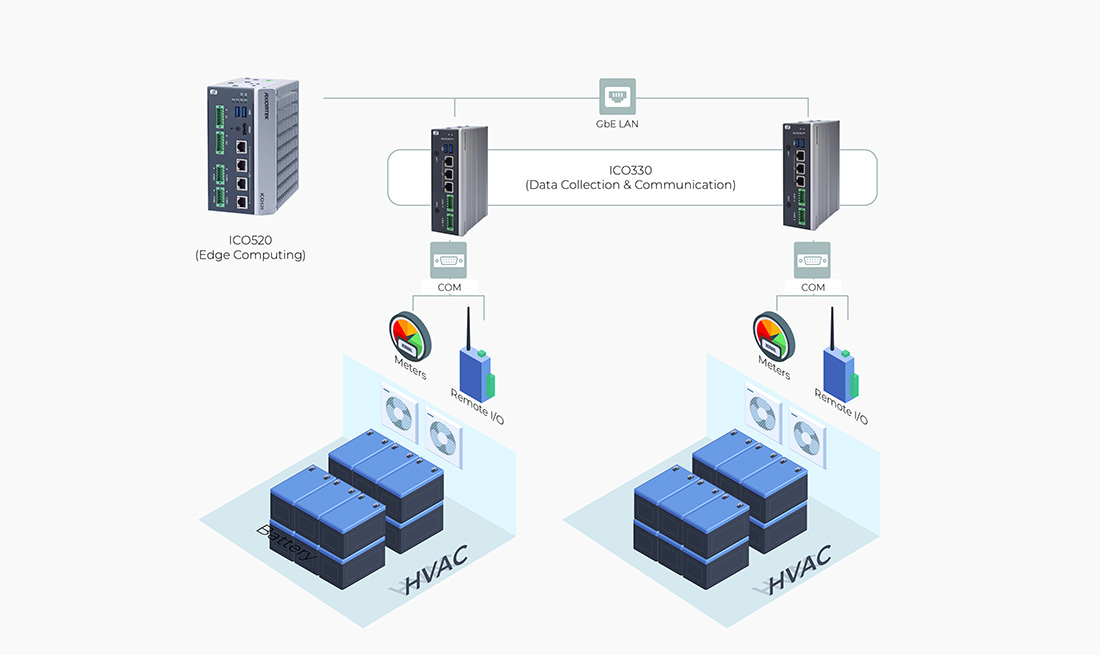

ICO520: Rugged Edge Computing IoT Gateway for Battery Management and Control
High-performance CPU for Edge Computing
The fanless ICO520, powered by the high-performance 12th Gen Intel® Core™ i7/i5/i3 or Celeron® processors, boasts robust data processing capabilities and helps to optimize the battery management system at the edge level.
Software Diagram
The ICO520 features eAPI, facilitating seamless integration and data exchange while increasing customization flexibility and control capabilities. Axiomtek also offers DigiHub for improved platform and application integration.
Rugged with Enhanced Connectivity
The rugged ICO520 boasts a wide operating temperature range from -40°C to +70°C and a broad power input range of 9V to 36V DC. It features rich I/O interfaces, enabling seamless connectivity with various sensors and devices such as solar PV, meters, and other IO gateways.
Promote Grid Integration and Proficiency with Smart Grid
As electricity demand rises, grid structures grow increasingly complex, requiring efficiency optimization. The smart grid, a two-way communication electricity network, offers a comprehensive yet intricate solution by leveraging digital technologies and sensors for real-time monitoring and control. To achieve the goal of remote monitoring, a high-performance cloud-based IoT architecture is highly recommended.

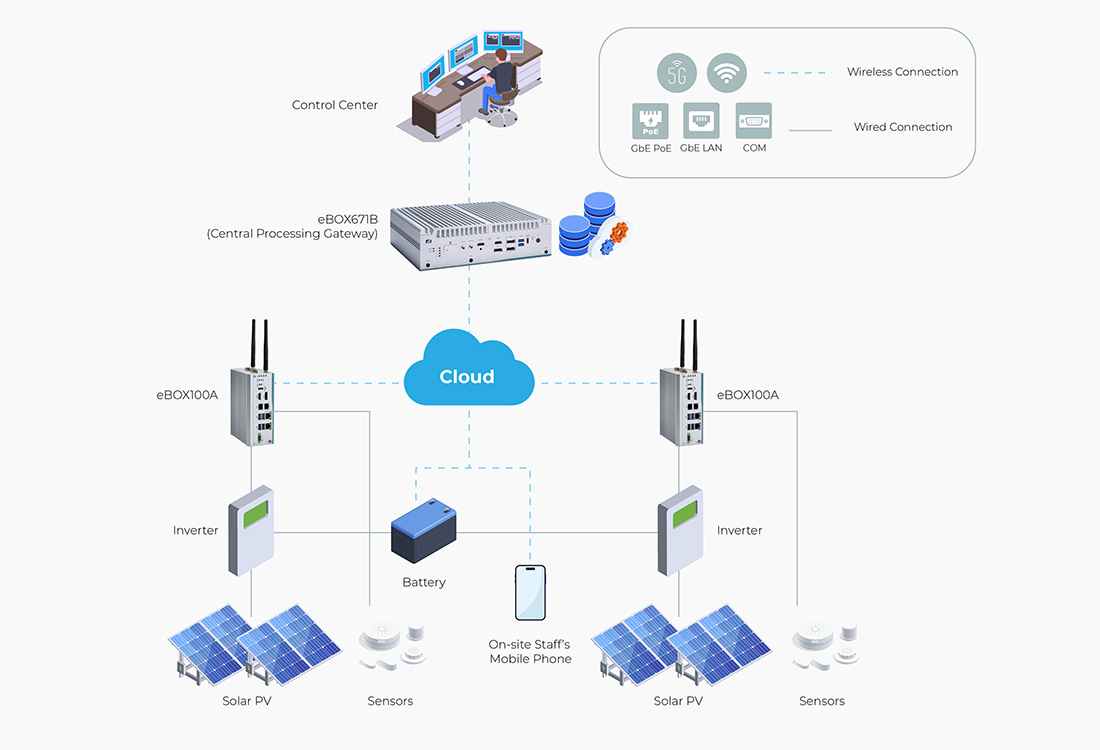

eBOX671B: Central Processing Gateway for Real-time Data Processing
High-performance Intel CPU
The eBOX671B is powered by the high-performance 13th/12th gen Intel® Core™ i9/i7/i5/i3 and Celeron® processors with Intel® R680E chipset (codename: Alder Lake S), allowing it to analyze a huge amount of data swiftly.
Low Latency Wireless Connectivity
Cloud-based IoT architecture relies on a seamless and low-latency wireless connection. In response to this demand, the eBOX671B offers robust support for Wi-Fi 6E and 5G through three 2.5GbE LAN ports, one M.2 Key E 2230 slot, and one M.2 Key B 3052 slot, guaranteeing rapid and stable wireless connectivity.
Sufficient and High-speed Storage Capacity
The reliable eBOX671B comes with two 262-pin DDR5-4800 SO-DIMM slots with up to 64GB of system memory. Two 2.5” SATA HDD/SSD (RAID 0,1 supported) drive bays, one high-speed NVMe through M.2 Key M 2280 slot, and one mSATA are available for extensive storage needs.
Manage Energy Locally with Microgrids
Most sustainable energy sites face limitations due to weather and geography, often located far from areas with high electricity demand. Microgrids offer a solution as self-sufficient systems that can operate autonomously, managing and providing energy at the local level. They are an excellent choice for distributed resources, including household use. Customers can implement a simple household microgrid system with our IoT gateway controller.

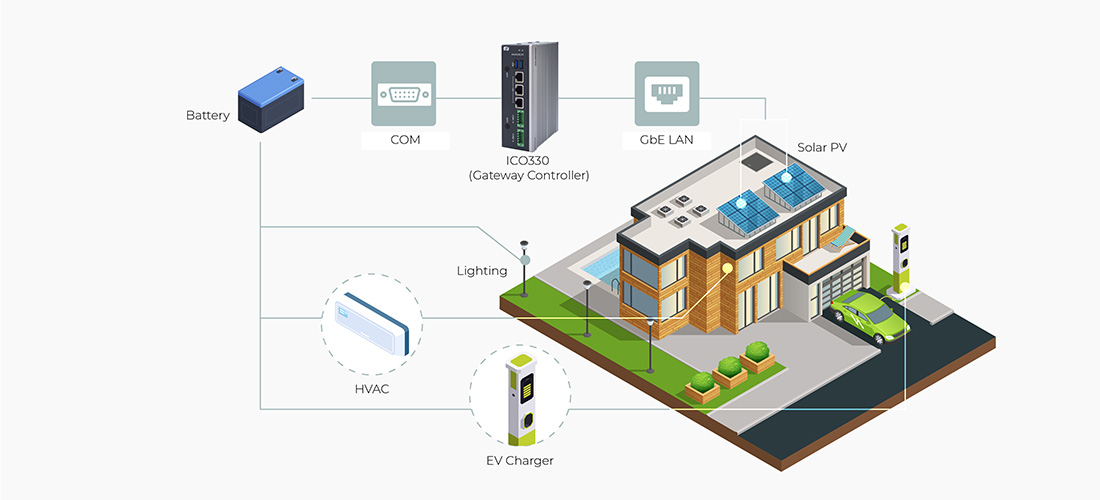

ICO330: Energy-Efficient IoT Gateway Controller with Rugged Design
Rugged and Energy Effective
The ICO330 is powered by the power-efficient Intel Atom® processor. It can operate smoothly from -40°C to +70°C and features wide power input from 9 to 36 VDC, allowing it to function properly in harsh environments.
Great Connectivity with a Compact Size
The compact ICO330 measures just 55 mm x 110 mm x 155 mm, offering versatility to suit various needs. It comes in two types: full and slim. Both types include three 2.5GbE LAN ports, 2 COM ports, 2 USB ports, and HDMI connectivity. Customers opting for the full type gain access to an extra 4 COM ports and DIO capabilities.
DigiHub and eAPI for Easy Integration
Our DigiHub and eAPI streamline integration for customers, making it easier than ever to connect with their own devices, and optimizing their development speed.
Stable and Real-time Monitoring System
A stable real-time monitoring system is crucial for managing complex grid systems. However, it’s quite daunting, since it needs to analyze huge amounts of instant data from numerous devices and generation sites. Axiomtek’s robust IoT gateway optimizes this system by simultaneously collecting vast amounts of data from various devices and generation sites while converting protocols from end devices like meters and inverters.

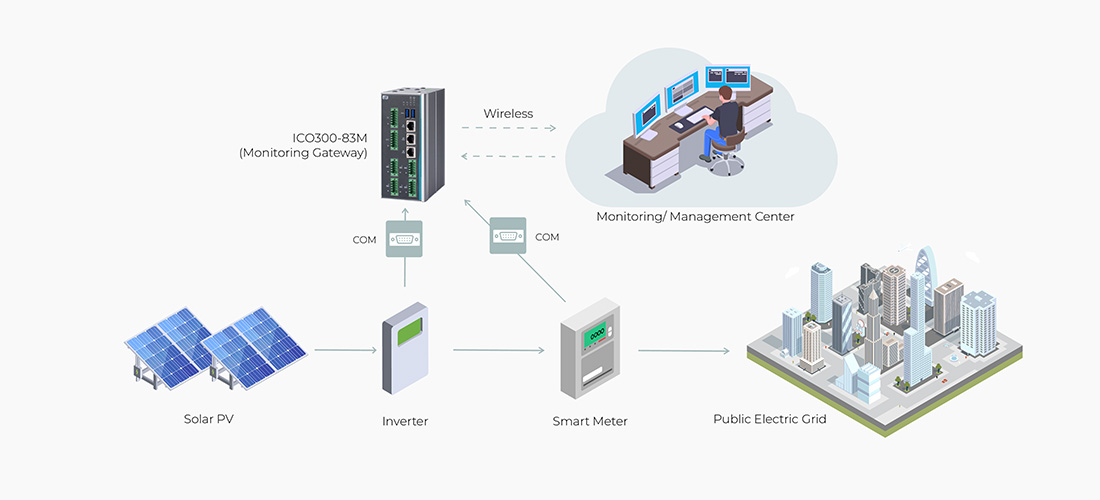

ICO300-83M: ATEX/CID2 Certified DIN-Rail Fanless IIoT Gateway for Hazardous Deployment
Low Latency Connectivity
The ICO300-3M features a rich I/O interface of COM, DIO, LAN, and USB. It supports Wi-Fi, 4G, and 5G for wireless and low-latency connection.
Anti-explosion & Rugged
Safety is paramount in energy generation plants. That's why we designed our ICO300-83M with anti-explosion standards, certified by ATEX & CID2. In addition, it features a rugged design with a wide operating temperature range and wide power input, ensuring resilience in harsh environments.
Software Integration Realize Remote Monitoring
We’ve developed our eAPI and DigiHub to offer our customers flexibility and convenience during the integration with their devices and applications, enabling them to realize remote monitoring systems.
